易光新聞

易光科技LED驅動器完成HALT和HASS測試（二）

續（一）

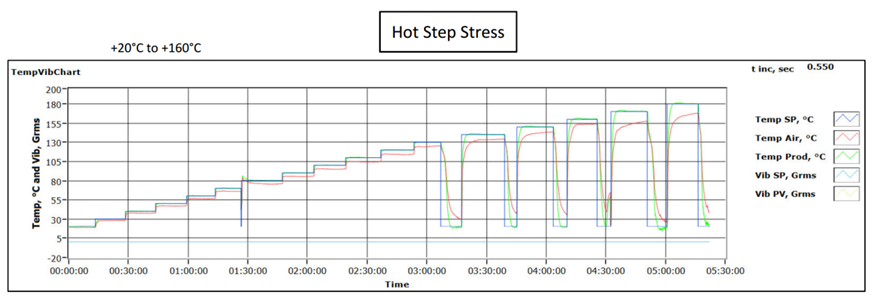

高溫階梯應力試驗結果：

Setpoint (°C)	Functional Test Result (Pass/Fail)	Notes
+20	Pass	Sample no.1 was applied in this test.
+30	Pass
+40	Pass
+50	Pass
+60	Pass
+70	Pass
+80	Pass
+90	Pass
+100	Pass
+110	Pass
+120	Pass
+130	Fail	The LED light panel could not light up.
+20	Pass	It recovered at +20°C. The plastic case of the LED driver had no observable deformation when observed at +20°C. Hot operating limit was found at +120°C.
+140	Fail
+20	Pass
+150	Fail
+20	Pass
+160	Fail
+20	Pass
+170	Fail
+20	Pass
+180	Fail	The LED light panel could not light up.
+20	Pass	It could not recover at +20°C. Hot destruct limit was found at +180°C.

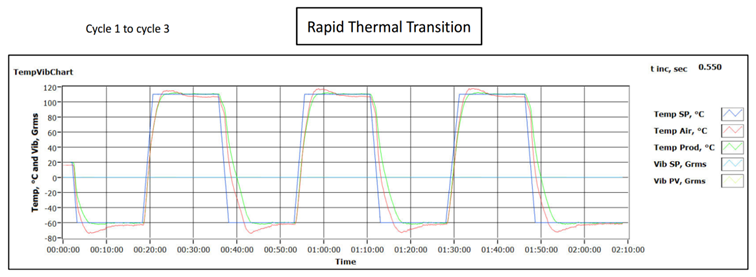

4.2 快速溫變?cè)囼?yàn)

該系統進行五次溫度循環，從60℃至+ 110°C，平均熱轉化率70°C/每分鐘。在每個極端溫度的停留時間為5分鐘。

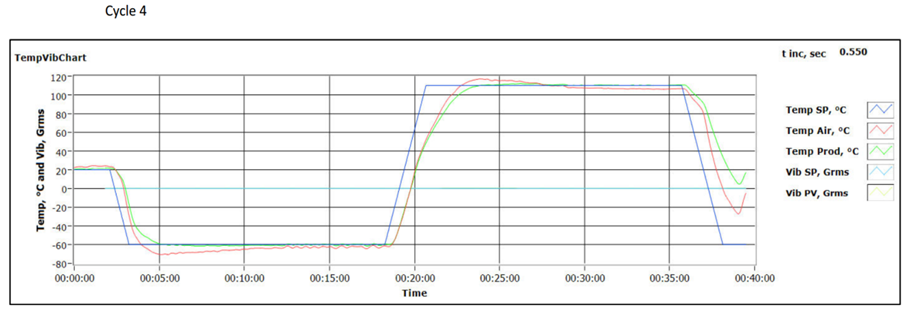

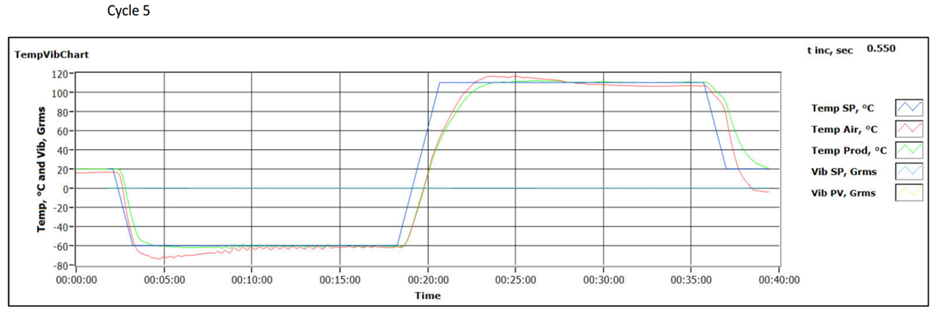

快速溫變?cè)囼?yàn)結果：

Cycle	Setpoint (°C)	Functional Test Result (Pass/Fail)	Notes
Start	+20	Pass	Sample no.2 was applied in this test.
1	-60	Pass
1	+110	Fail	The LED light panel could not light up.
2	-60	Pass
2	+110	Fail	The LED light panel could not light up.
3	-60	Pass
3	+110	Fail	The LED light panel could not light up.
4	-60	Pass
4	+110	Fail	The LED light panel could not light up.
5	-60	Pass
5	+110	Fail	The LED light panel could not light up.
End	+20	Pass	It recovered at. +20°C.

結束（二），續（三）。

因篇幅所限，僅上傳部分?jǐn)?shù)據。

更多內容，可向易光科技公司技術支持獲取。
